Karcher - HD 7/18-4 M Cold Water Pressure Cleaner - 3 Phase

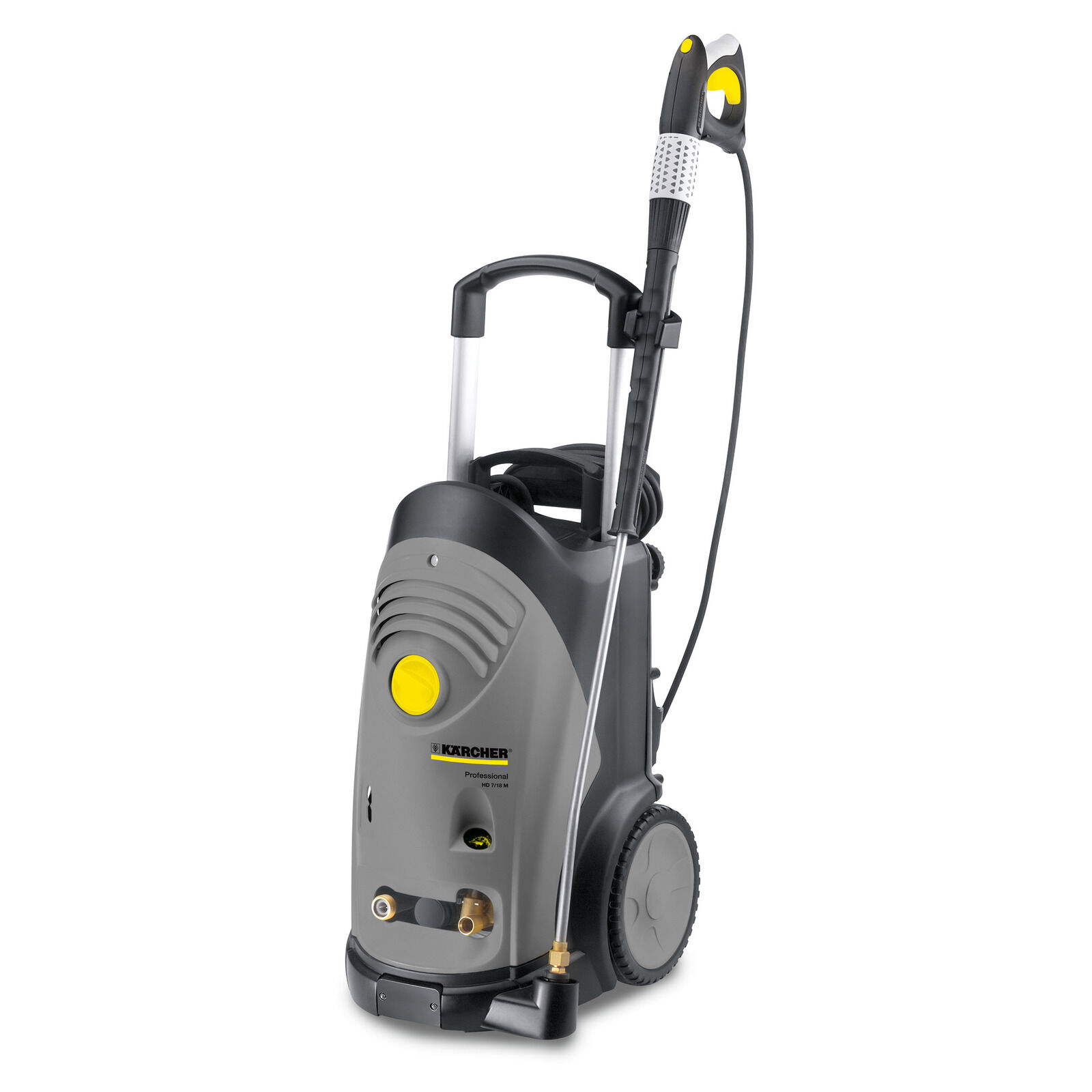

Karcher HD 7/18-4 M Cold Water High Pressure Cleaner - 3 Phase, 400V

The Karcher HD 7/18-4 M is a three-phase cold water high pressure cleaner for commercial and industrial cleaning. It is driven by a four-pole, low-speed electric motor with air and water cooling, designed for intensive use, and it runs from a 400V, 50Hz three-phase supply with a 5kW connection load. Working pressure adjusts from 30 to 180 bar, with a maximum of 215 bar, and the flow rate ranges from 240 to 700 L/h. Servo Control lets the operator set pressure and water volume at the trigger gun. The Easy Press trigger gun has a soft grip and reduces the holding force needed on the trigger. SwitchChem dosing gives infinitely variable detergent control, and its two-way valve switches between two cleaning agents. The machine accepts inlet water up to 60°C. Large wheels and an upright frame make it easier to move over uneven ground. The power cord stores at the rear, and an integrated holder secures the lance during transport.

Key Features & Benefits

• Four-Pole Low-Speed Motor: An air and water cooled three-phase motor built for intensive commercial use.
• Servo Control: Pressure and water flow are adjusted directly at the trigger gun, without walking back to the machine.
• Easy Press Trigger Gun: A soft-grip gun designed to reduce the holding force needed on the trigger.
• SwitchChem Detergent Dosing: Infinitely variable dosing, with a two-way valve for switching between two cleaning agents.
• Built to Move Around Sites: Large wheels handle uneven surfaces, and the upright design makes it easy to push or pull. The power cord stores at the rear and the lance clips into an integrated holder.

Application Areas

• Washrooms, amenities and tiled wet areas
• Vehicle and machinery cleaning, including underbodies and wheel arches with the optional underbody lance
• Paved areas and floors with an optional Karcher surface cleaner
• Gutters, drains and pipes with optional gutter and pipe cleaning accessories
• Food industry sites with optional food-grade high-pressure hoses
• Requires a 400V three-phase power supply. Cold water machine, maximum inlet water temperature 60°C.

Specifications

• Brand: Karcher
• Model: HD 7/18-4 M
• Product Type: Cold water high pressure cleaner
• Power Supply: 3 phase, 400V, 50Hz
• Connection Load: 5kW
• Motor: 4-pole low-speed, air and water cooled
• Working Pressure: 30 to 180 bar (approx. 435 to 2610 psi)
• Maximum Pressure: 215 bar (approx. 3120 psi)
• Flow Rate: 240 to 700 L/h (4 to 11.7 L/min)
• Maximum Inlet Temperature: 60°C
• Weight (with accessories): 49kg
• Dimensions (L x W x H): 467 x 407 x 1010mm
• Included Equipment: Easy Press trigger gun with soft grip, Servo Control, 10m high-pressure hose, 1050mm rotatable stainless steel spray lance, triple nozzle (0°, 25°, 40°, manual changeover), pressure cut-off
• Country of Manufacture: Germany
• SKU: 1.524-220.0
